Performance feature
◎Especially suitable for the performance test of safe valve seal pressure, ration, open and return pressure.
◎The impact method adopts the flange two ends seal, contracting & pressing clamp valve flange back working test.
◎Equip with the automatic adjustable boosting test pressure device in system .
◎ Pressure trial medium is nitrogen or air.
◎Equip with the pressure test safe protective device.
◎Order the matched intelligent detection data management system.
Main technical parameter and specification
| Model specification |
Nominal diameter of
the tested valve |
Flange of the tested valve |
Impact oil cylinder
max pressure |
Motor |
| Min |
Max |
|
kw |
p |
v |
Hz |

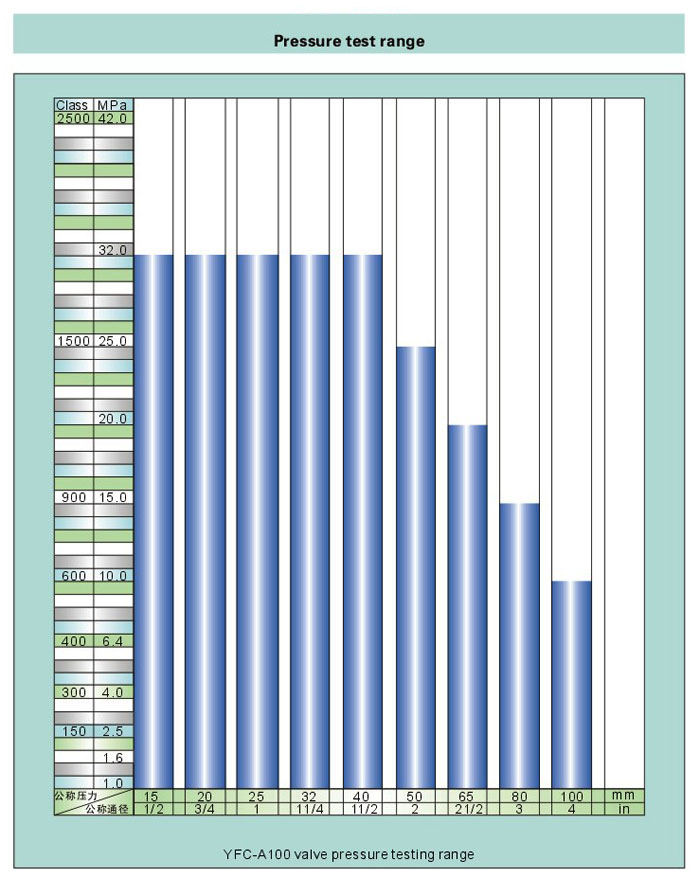

| YFC-A/100 |
DN15-100
|
95
|
290
|
31.5MPa
|
2.2 |
6 |
380 |
50 |
| YFC-A/200 |
DN50-200 |
160 |
405 |
31.5MPa |
2.2 |
6 |
380 |
50 |
| YFC-A/300 |
DN80-300 |
195 |
580 |
31.5MPa |
2.2 |
6 |
380 |
50 |
