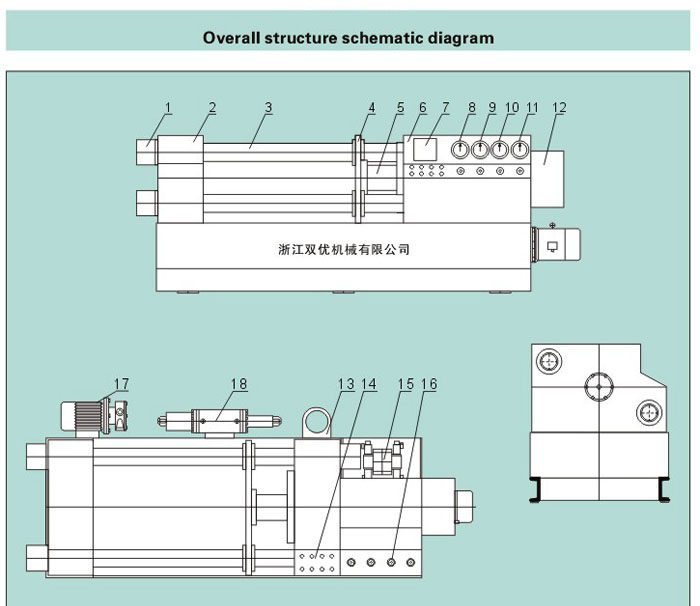

Draw-bar cap
|
Right framework
|
Pneumatic table
|
Control valve |
| Left framework |
Pressure contrast table |
Top press oil cylinder switch |
Low pressure water pump |
| Draw-bar |
Top pressure boosting table |
Boosting oil cylinder |
High pressure water pump |
| Removal framework |
Electric point joint pressure table |
Button operating panel |
|
| Piston rod |
Hydraulic meter |
Hydraulic component |
|
| YFC-H overall structure |
